C Series

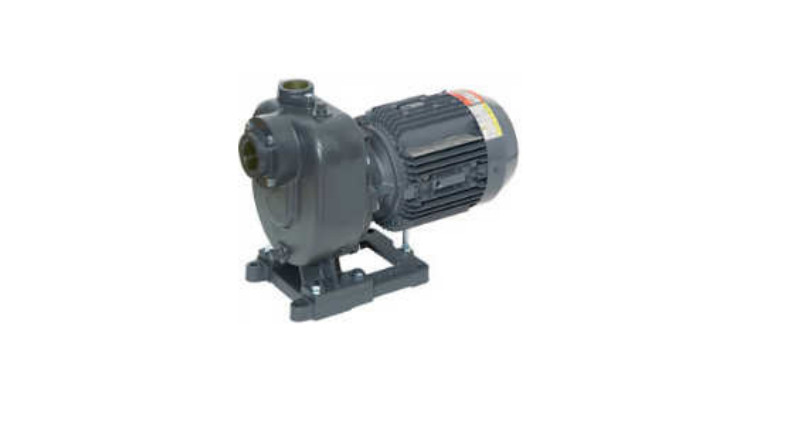

CPFD / CPSD

High-efficiency, self priming and resistant to slurry centrifugal pump

Applications
   Supplying slurries contaminated coolant to
   medium or large size VDF (Hydrocyclone)

   Transferring slurries contaminated liquid from
   underground tank or sump pit

 Features
   SiC mechanical seal and fluoroelastomer (FKM) seals provide strong chemical resistance and  suitable for handling
   slurries contaminated liquid.
   Highly efficient pumps with low power consumption greatly reducing CO2 emissions.
   Horizontal self-primingpump for simple installation and servicing,  and offers flexibility to be  used in mobile applications.
   Using the Back Pull Out method it is possible to inspect and replace internal pump components without removing piping.

 Caution
    Characteristic curves show performance with water. However, the CPFD is optimized for coolants and is not suitable
    for water applications.
    Drawing in exceptionally concentrated slurries all at once may result in clogging around the impeller.
    Please take note of the suction piping inlet when starting the pump
    As the coolant viscosity rises the pump will consume more power. Take caution not to overload the motor.

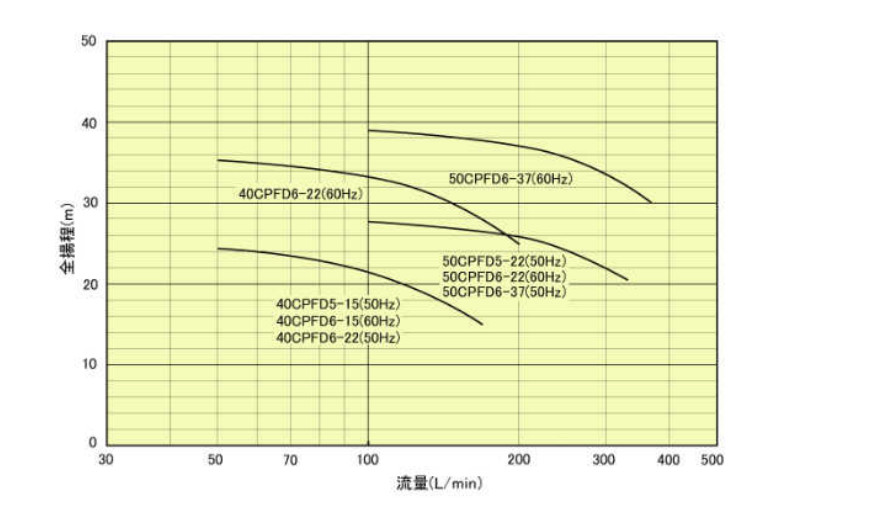

Performance curve



Specification data

  Series name

20CPFD(S)5/6-07

40CPFD(S)5/6-15

40CPFD(S)5/6-22

  Total head  50Hz/ 60Hz

23.5 / 20

24.5 / 15

 35 / 25

  Flow rate  50Hz/ 60Hz

30 / 70

50 / 170

50 / 170

  Suction lifting head

- 5.5 m

- 5.5 m

 - 5.5 m

  Viscosity (mm2/s)

 75

  75

  75

  Connection

Rc 1

Suc. Rc. 1 1/2,  Dis. Rc. 1

Suc. Rc. 1 1/2, Dis. Rc. 1

  Motor power (kW)

0.75

1.5

1.5

  Motor standard

JEC, UL, PSE, IP44, F clas


 Specification data

  Series name

50CPFD(S)5/6-22

50CPFD(S)5/6-37

  Total head  50Hz/ 60Hz

27 / 21

38 / 30

  Flow rate  50Hz/ 60Hz

100 / 300

100 / 340

  Suction lifting head

- 6 m

- 6 m

  Viscosity (mm2/s)

 75

  75

  Connection

JIS 10K , 50A

JIS 10K , 50A

  Motor power (kW)

2.2

3.7

  Motor standard

JEC, UL, PSE, IP44, F class

JEC, UL, PSE, IP44, F class


   Material

  Series name

CPFD

CPSD

  Casing & cover

FC200

 SCS13

  Impeller

SCS13

 SCS13

  Mechanical seal

SiC- SiC, FKM

SiC- SiC, PTFE

  O-ring

FKM

 PTFE

  Shaft

SS316

 SS316

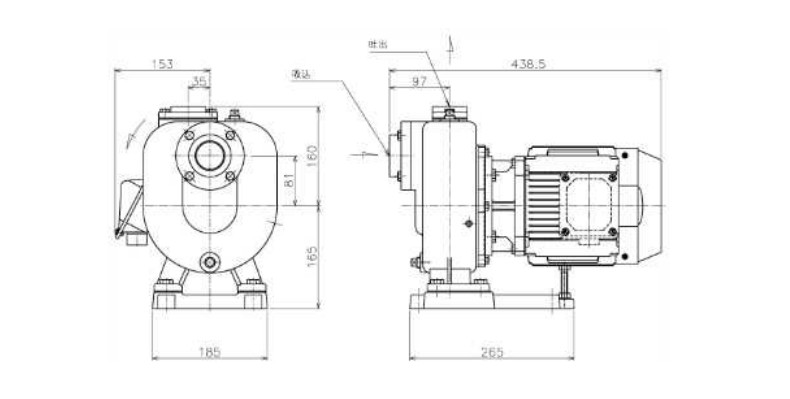

Dimensions
  (40CPFD)



Dimensions
   Please ask sales representative for other detail
