C Series
CLD / CTD

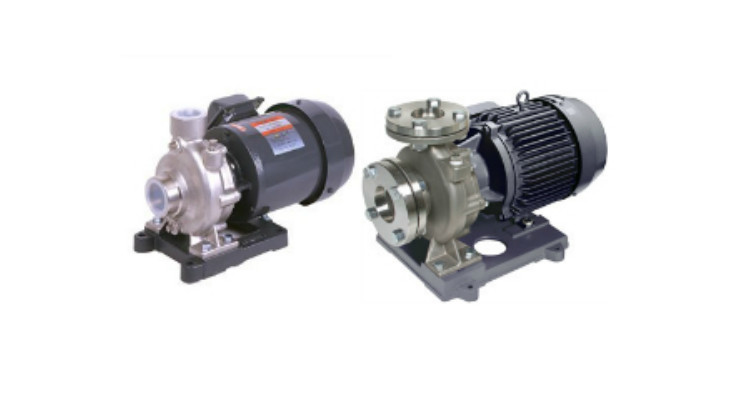

Stainless steel centrifugal pump

 Applications
   General industrial applications
   Petrol and chemical industries
   Food and beverage, pharmaceutical and medical
   Pure water and chemical liquid supply

 Features
   Due to selection of material combinations in Staianless
   steel and PTFE, it can target variety of applications
   Easy maintenanace is possible without removing piping
   because B.P.O (Back-Pull-Out) design had been applied
   SiC x special carbon mechanical seal (-J) option available
   for pure water (low viscosity liquid) applications

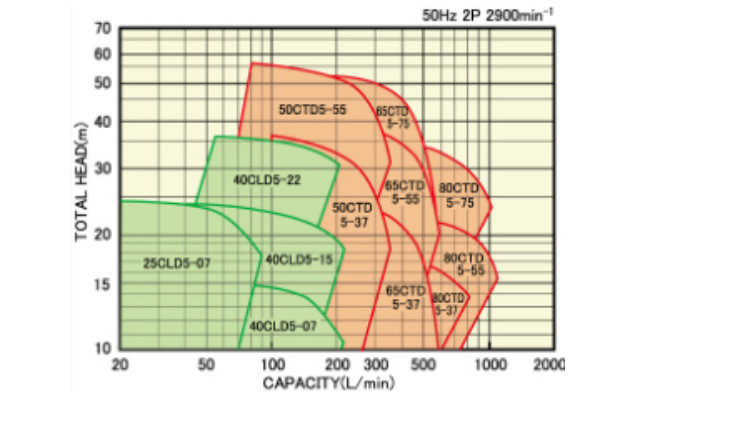

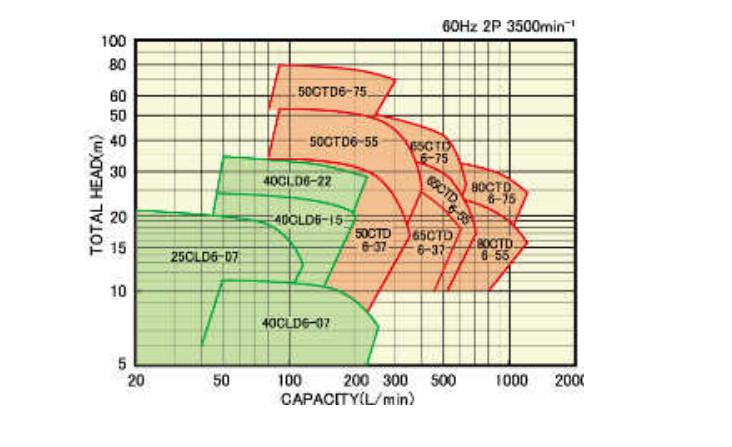

Performance curve

Specification data

  Series name

CLD(-J)

CLD

CTD

  Total head (MAX.)

 36m

76m

  Flow rate (MAX.)

250L/min

1400L/min

  Liquid temp.

~80

~90

~90





  Material

  Series

CLD (-J)

CLD

CTD

  Casing / cover

SCS13

  Impeller

SCS13

  Mechanical seal

SiC - Carbon, PTFE

SiC - SiC, PTFE

Ceramic- Carbon, PTFE

  O-ring

PTFE

  Shaft

SS316  (SS304 for Increased Safety motor)


  Motor Specification

  Three phase / TEFC Outdoor motor (ZE)
   0.75~7.5kW

  50Hz : 200V , 60Hz : 200/220V
  IP44, Insulation class: F, PSE, UL (CCC)

  Increased Safety Motor (A)
   0.75~7.5kW

  50Hz : 200V , 60Hz : 200/220V
  IP44, Insulation class: E or B, PSE

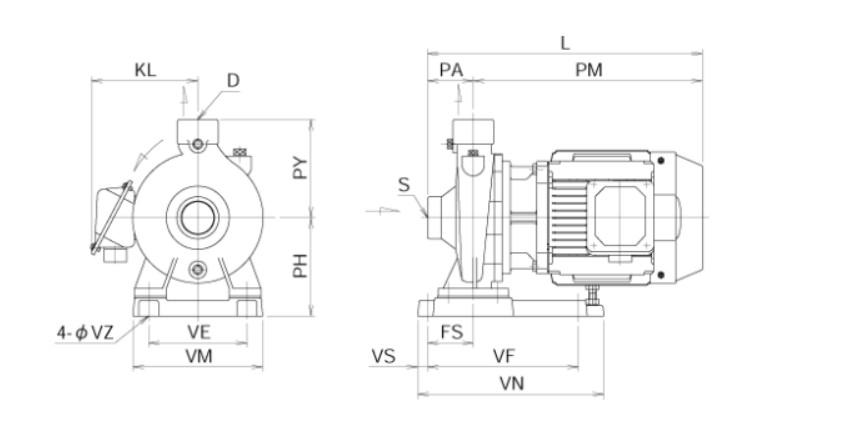

Dimensions

Dimensions
   Please ask sales representative for the detail
