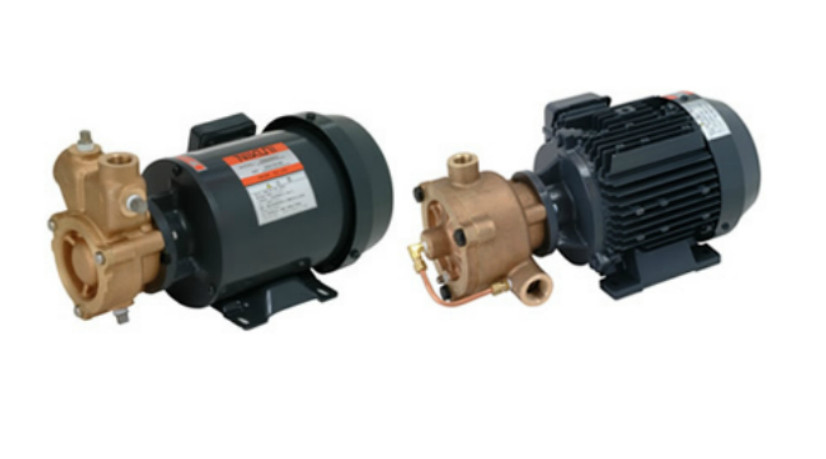

K Series
KED-V / KHD / KHD-V / KWD

CAC bronze regenerative turbine pump

 Applications
   General industrial applications
   Circulation of hot and cold water /media
   Integrated with a variety of OEM machines

 Features
   Lead-free copper components, friendly to people and
   the environment
   Amount of copper leaching onto water < 0.005 mg/L
   (standard value 0.01 mg/L)
   Stable and reliable performance at small flow rates

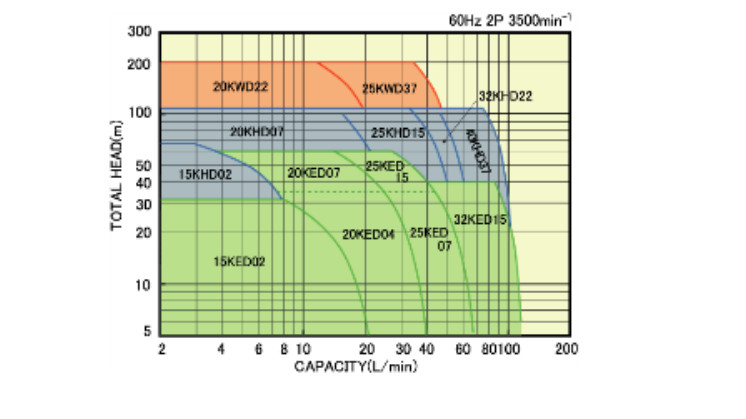

Performance curve

Specification data

  Series name

KED (-V)

KHD (-V)

KWD (-V)

  Total head (MAX.)

 60m

110m

200m

  Flow rate (MAX.)

110L/min

110L/min

50L/min

  Liquid temp.

~120 (standard) / ~150 (-V)



Material

  Series

KED (-V)

KHD (-V)

KWD (-V)

  Casing / cover

CAC911

  Impeller

SS403

SS403

SS403

  Mechanical seal

SiC - Carbon, NBR (Standard)
SiC - Carbon, FKM (-V)

  O-ring

NBR (Standard) / FKM (-V)

  Shaft

SS316


  Motor Specification

  Single phase / Open drip proof motor (S)

  50Hz/ 60Hz, 100V -230V, 0.3 to 0.55kW
  IP22, Insulation class: F, PSE

  Three phase / TEFC motor (Z)

  50Hz : 200V , 60Hz : 200/220V
  IP44, Insulation class: F, PSE

  Multi-voltage / TEFC motor (ZM)
   0.3~0.56kW

  50Hz : 200V-415V , 60Hz : 200V-460V
  IP44, Insulation class: E, PSE, UL,(CCC)

  Increased Safety Motor (A)
   0.3~3.7kW

  50Hz : 200V , 60Hz : 200/220V
  IP44, Insulation class: E or F, PSE



Dimensions



Đang cập nhật
