Tfd

TFD

Regenerative turbine pump for hot oil

 Application
   For hot oil supply

 Features
   Long mechanical seal lifetime through the special
   gland packing and cooling fins design

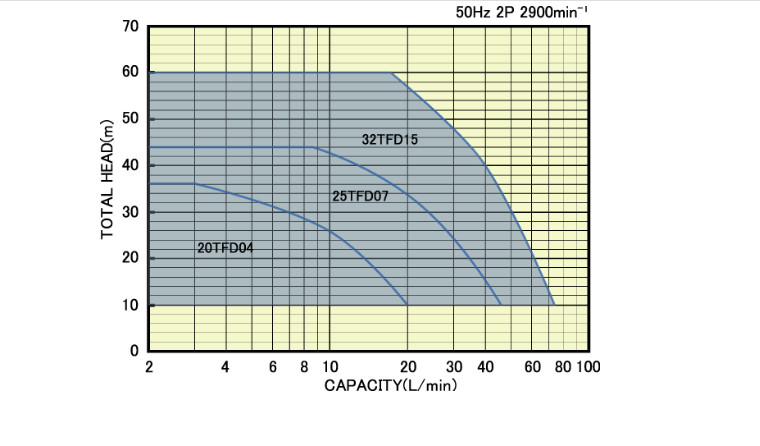

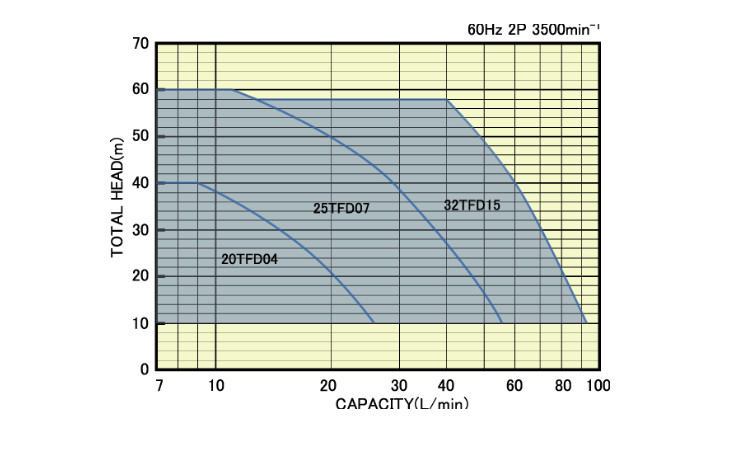

Performance curve

  Specification data

Connection : JIS B 2291 Hydraulic flange 210 kgf/cm2


 Material

Motor :   Increased Safety Motor,
             50Hz : 200V, 60Hz : 200/220V
             IP44, Insulation class: F, PSE

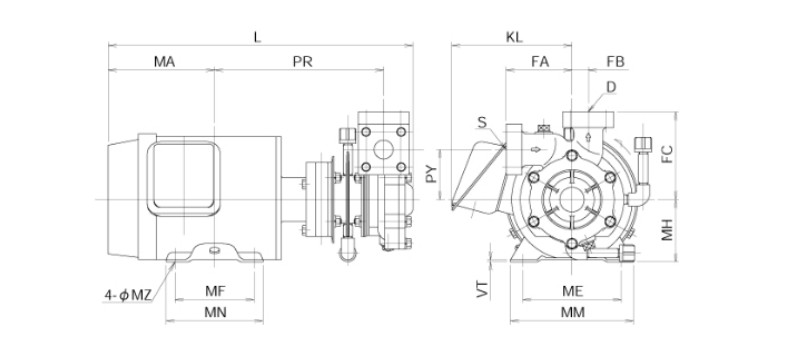

Dimensions
