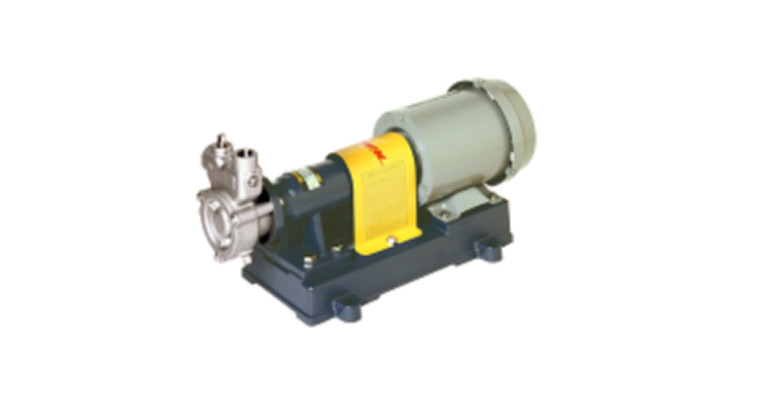

N Series
NP / NH-V
Stainless steel regenerative turbine pump
Applications
General industrial applications
Circulation of hot and cold water /media
Integrated with a variety of OEM machines
Pure water and chemical liquid supply
Features
Stable and reliable performance at small flow rates
Suitable for handling a variety of liquids including
pure water and various chemicals

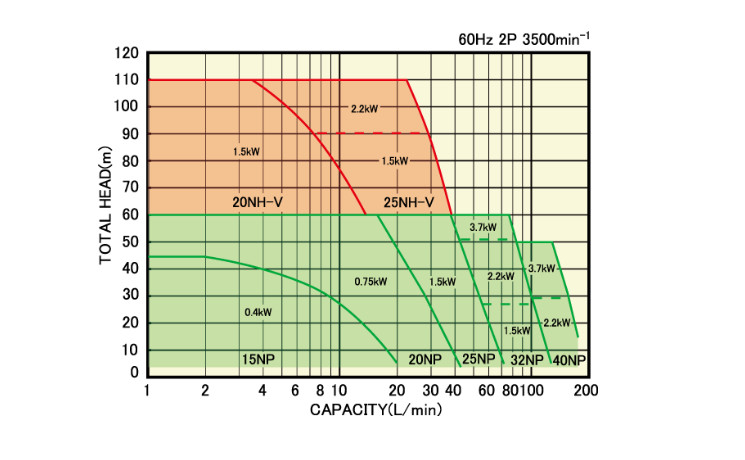

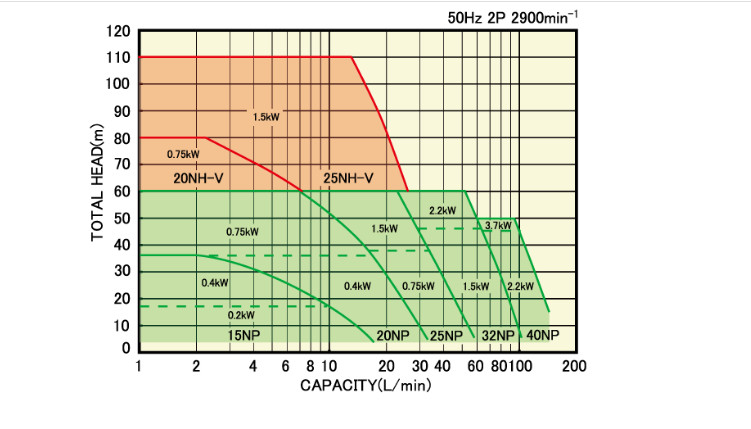

Performance curve
Specification data
|
Series name |
NP |
NH-V |
|
Total head (MAX.) |
60 m |
110 m |
|
Flow rate (MAX.) |
160 L/min |
50 L/min |
|
Liquid temp. |
~90℃ |
~150℃ |
|
Connection |
Rc thread |
|
Material
|
Series |
NP-V |
NH-V |
|
Casing / cover |
SCS13 |
SCS14 |
|
Impeller |
SS304 |
SS316 |
|
Mechanical seal |
SiC - SiC, PTFE |
SiC - Carbon, PTFE |
|
O-ring |
PTFE |
FKM |
|
Shaft |
SS304 |
SS316 |

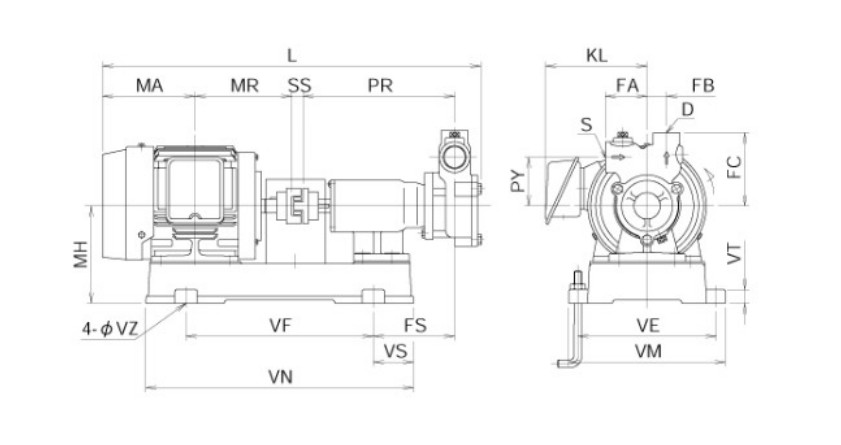

Dimensions
Đang cập nhật
