K Series
KP-V / KH-V

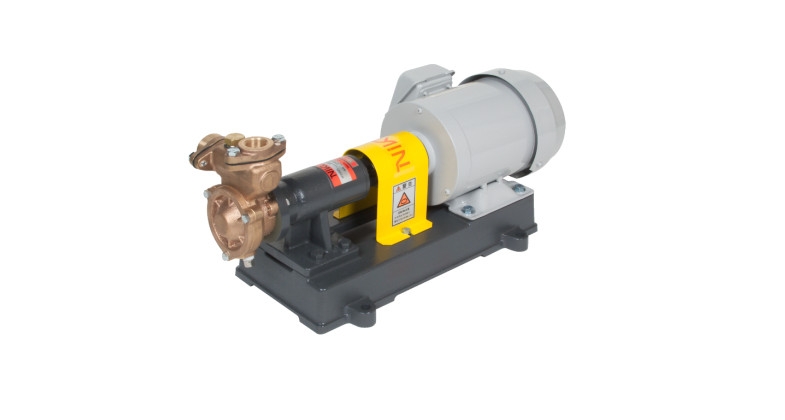

Cast bronze regenerative turbine pump

Applications
General industrial applications
Circulation of hot and cold water /media
Integrated with a variety of OEM machines

Features
No rusting due to the cast bronze and
stainless steel pump components
Stable and reliable performance at small flow rates

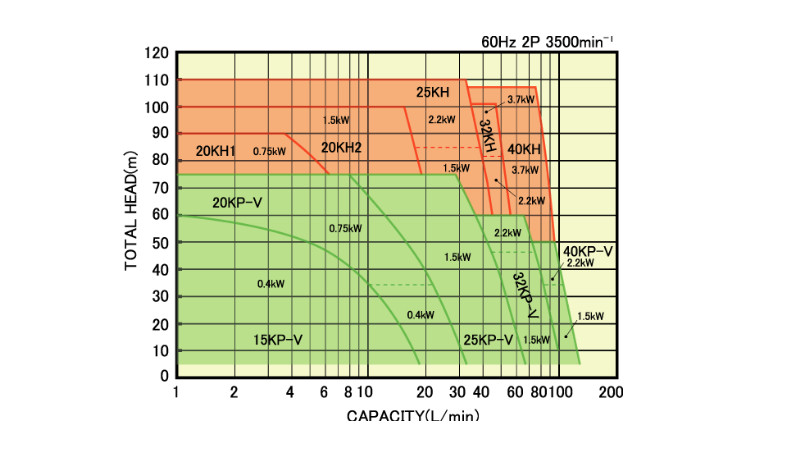

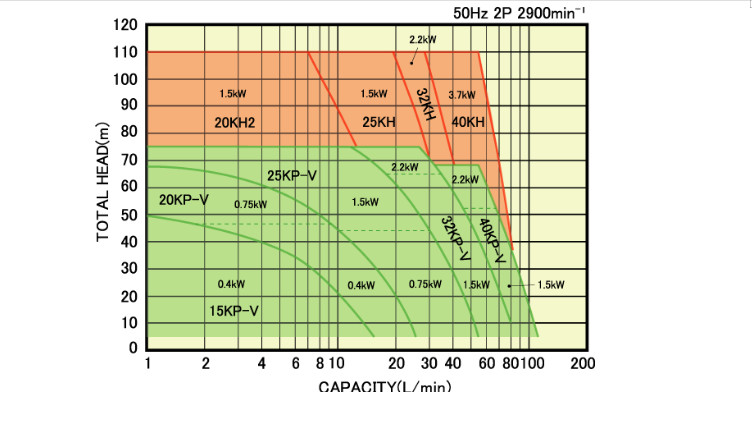

Performance curve

Specification data

Series name	KP-V	KH-V
Total head (MAX.)	75 m	110 m
Flow rate (MAX.)	140 L/min	90 L/min
Liquid temp.	~120℃ (standard) / ~150℃ (-V)

Material

Series	KP-V	KH-V
Casing / cover	CAC406
Impeller	CAC406 / SS304	SS403
Mechanical seal	SiC - Carbon, NBR (Standard) SiC - Carbon, FKM (-V)
O-ring	NBR (Standard) / FKM (-V)
Shaft	SS304
