SP

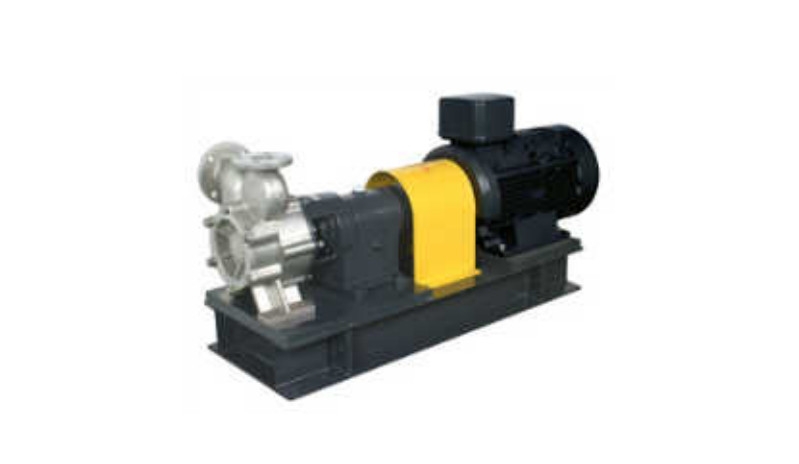

Cast stainless steel regenerative turbine pump for process applications




 Applications
   General industrial applications
   Pure water and chemical liquid supply
   Washing solvent supply, suitable for filtration applications

 Features
   No metal contact between the impeller and the casing
   and cover, eliminating wear and reducing contamination
   Simple robust structure with minimal consumable parts,
   suitable for processes requiring high reliability
   Due to selection of material combinations (SUS304 /
   PTFE / SiC) can target variety of applications
   Very low noise levels silimar to centrifugal pumps,
   additional noise reduction measures not required

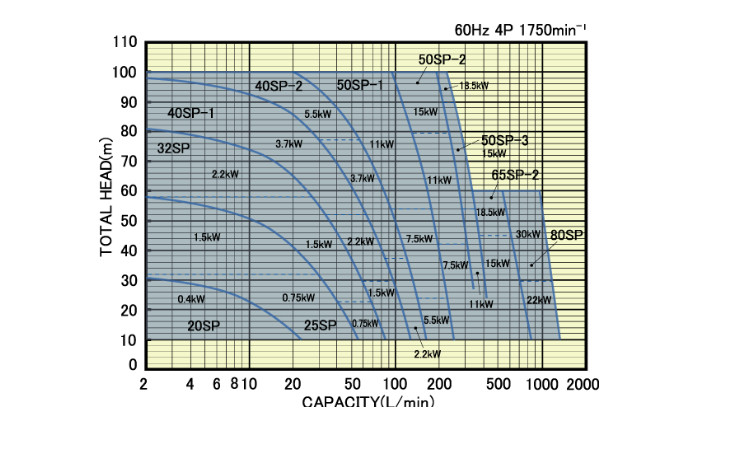

Performance curve


  Specification data

  Series name

SP

  Total head (MAX.)

 100 m

  Flow rate (MAX.)

1200 L/min

  Liquid temp.

~90  (Standard)

  Connection

JIS 10K


Special specification :
  Mechanical seal with the material of Tsungten carbide - Carbon or
  Tsungten carbide - Tsungten carbide availabe for 20SP to 50SP
  Mechanical seal with the material of SiC - Carbon or SiC - SiC / Carbon available for 65SP to 80SP
  Tsungten carbide - Tsungten carbide availabe for 20SP to 50SP
  Standard accessories : Coupling, base-plate, coupling guard


  Material


  Series name

SP

  Casing / Cover

 SCS13

  Impeller

SS304

  Mechanical Seal

  2040SP : Ceramic- Carbon
  50SP : SiC- SiC, PTFE
  65SP / 80SP : SiC -Carbon, FKM

  O-ring

PTFE

  Shaft

SS304

Dimensions
   Please ask sales representative for the detail
