UP

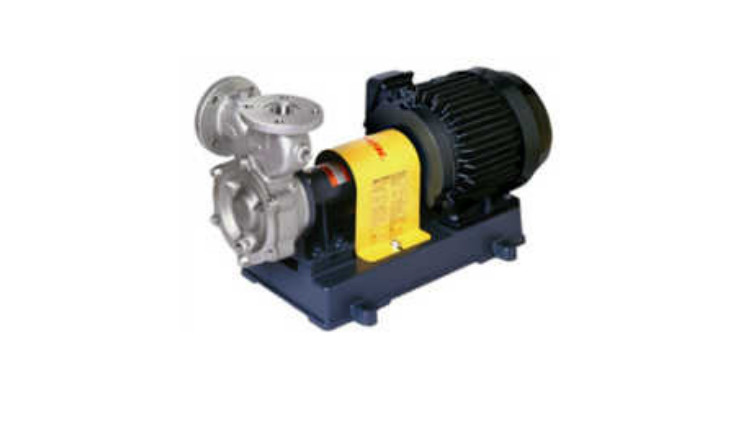

Low noise, stainless steel regenerative turbine pump. Base mounted


 Applications
   General industrial applications
   Pure water and chemical liquid supply
   Washing solvent supply, suitable for filtration applications

 Features
   Due to selection of material combinations (SUS304 /
   PTFE / SiC) can target variety of applications
   Very low noise levels silimar to centrifugal pumps,
   additional noise reduction measures not required
   Self-priming over 8 meters (25 feet)

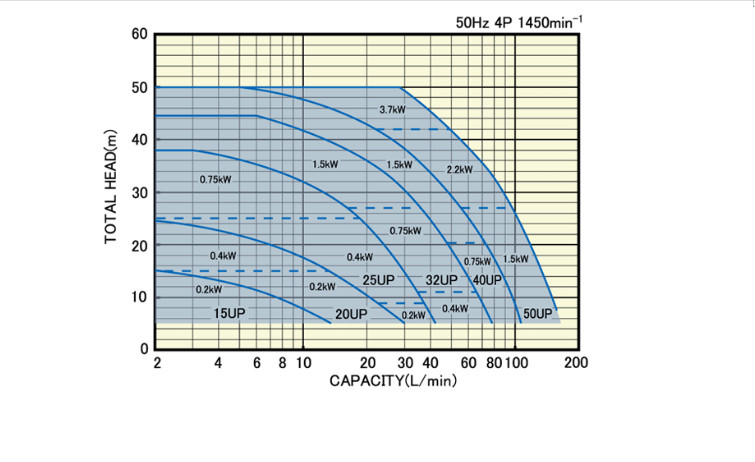

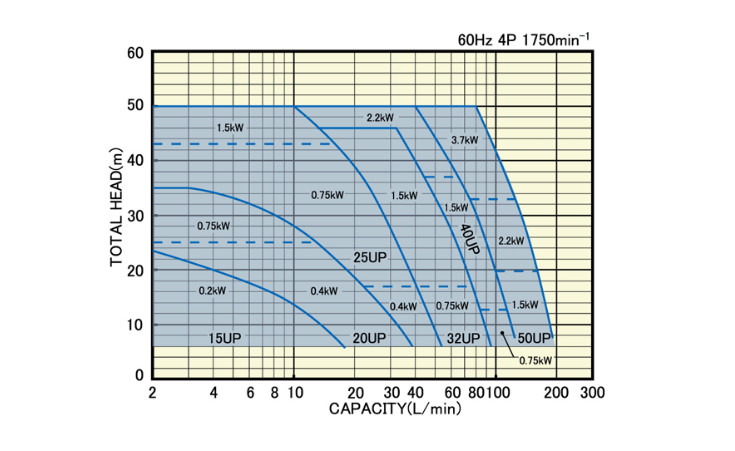

Performance curve

 Specification data

  Series name

UP

  Total head (MAX.)

 50 m

  Flow rate (MAX.)

200 L/min

  Liquid temp.

~90

  Connection

JIS 5K (Rc trhead)


Material


  Series name

UP

  Casing / Cover

 SCS13

  Impeller

SS304

  Mechanical Seal

SiC- SiC, PTFE

  O-ring

PTFE

  Shaft

SS304

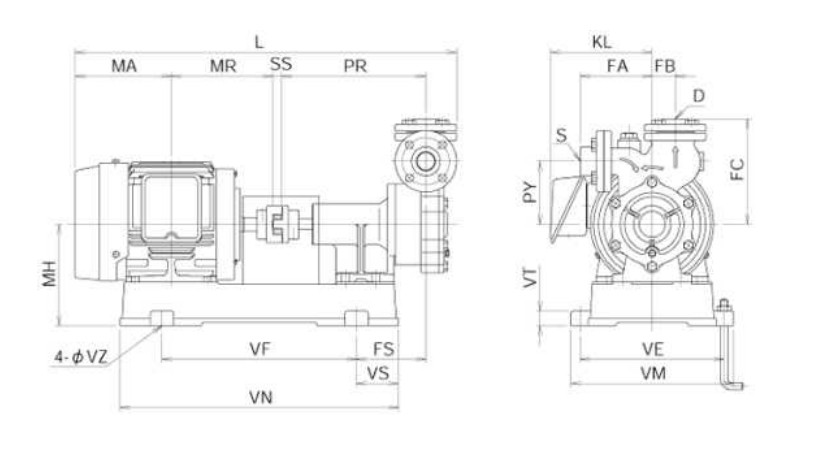

Dimensions



Đang cập nhật
