N Series
NP / NH-V

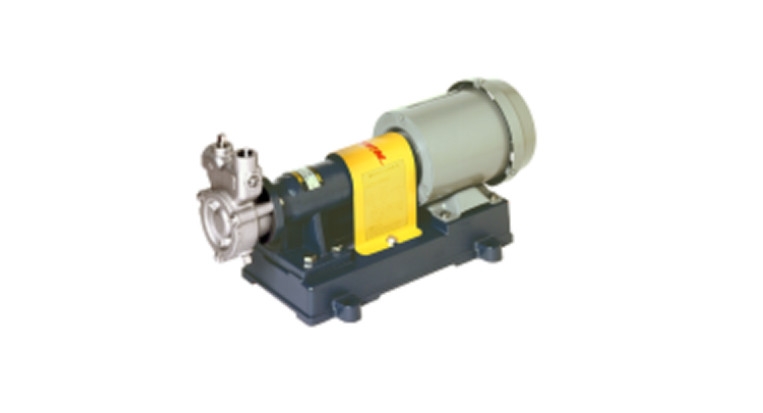

Stainless steel regenerative turbine pump

Applications
  General industrial applications
  Circulation of hot and cold water /media
  Integrated with a variety of OEM machines
  Pure water and chemical liquid supply

 Features
  Stable and reliable performance at small flow rates
  Suitable for handling a variety of liquids including
  pure water  and various chemicals

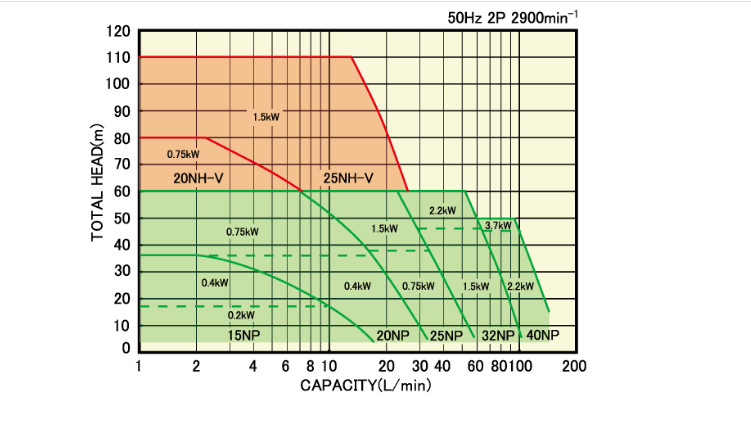

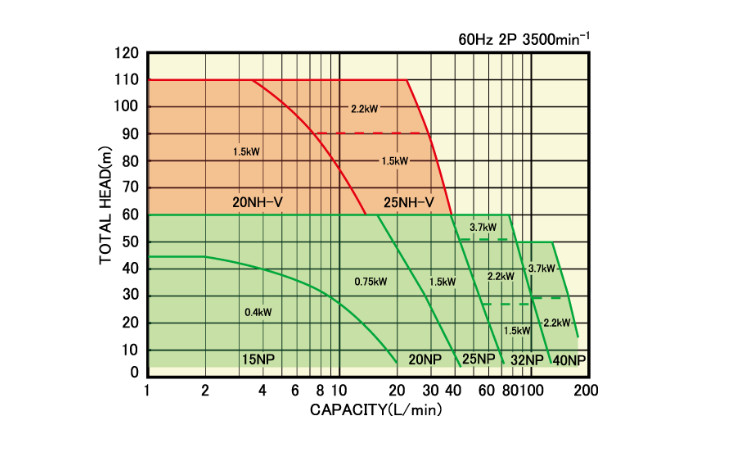

Performance curve

 Specification data

  Series name

NP

NH-V

  Total head (MAX.)

 60 m

110 m

  Flow rate (MAX.)

160 L/min

50 L/min

  Liquid temp.

~90

~150

  Connection

Rc thread


  Material

  Series

NP-V

NH-V

  Casing / cover

SCS13

SCS14

  Impeller

SS304

SS316

  Mechanical seal

SiC - SiC, PTFE

SiC - Carbon, PTFE

  O-ring

PTFE

FKM

  Shaft

SS304

SS316

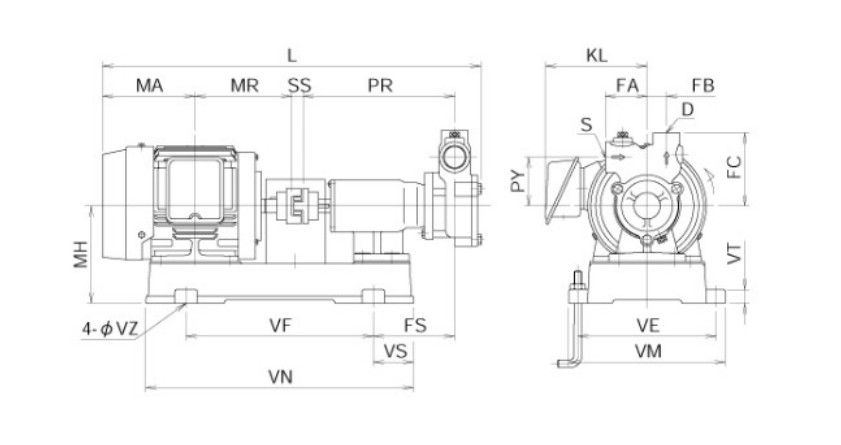

Dimensions





Đang cập nhật
