TN

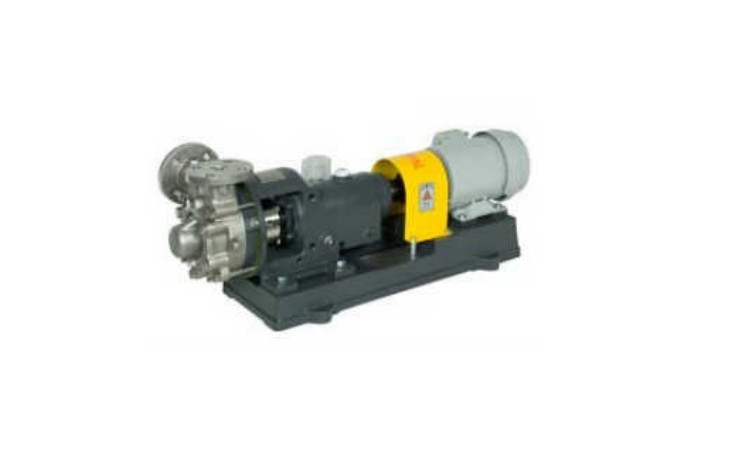

Cast stainless steel regenerative turbine pump for process applications


 Applications
   General industrial applications
   Petrochemical industrial
   Pharmaceutical and food industrial
   Chemical industrial

 Features
    As corrosion-resistant material is used, it is suitable
    for chemical liquid such as petroleum products
    and organic solvent
    It can be used at low NPSH and high suction pressure
    Suction lifting head up to 4 m

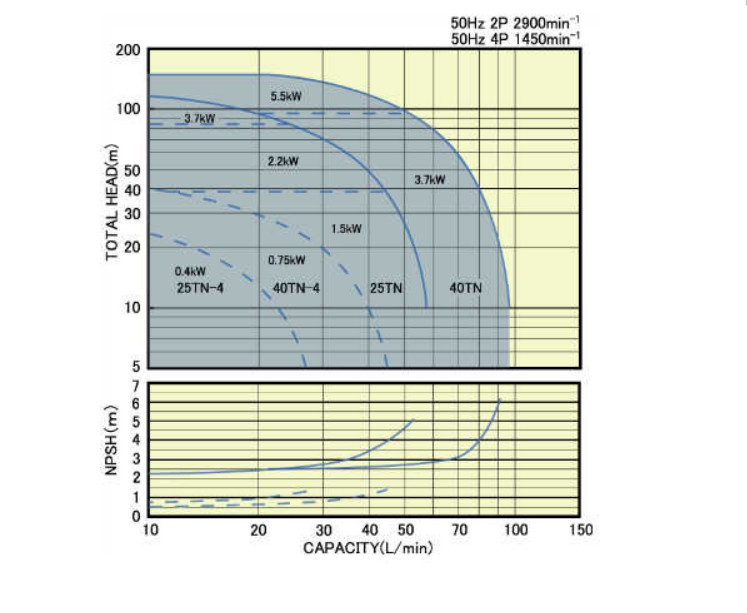

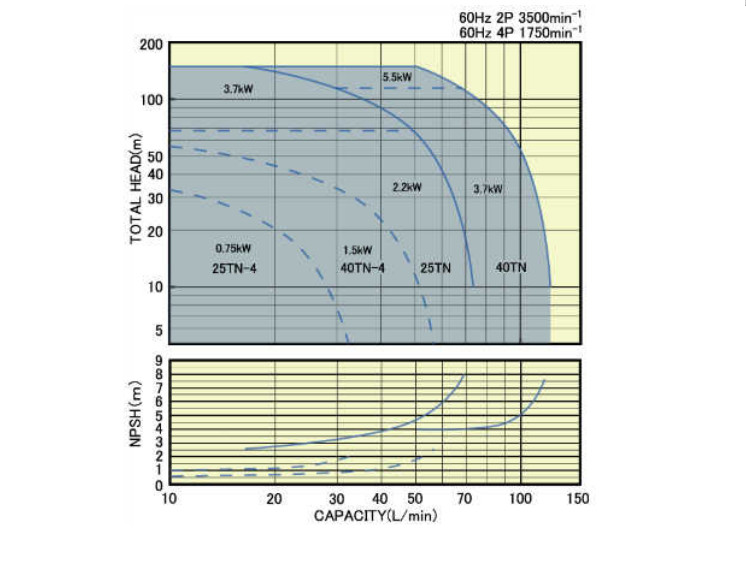

Performance curve


  Specification data

  Series name

TN

TN-4P

  Total head (MAX.)

 150 m

62 m

  Flow rate (MAX.)

130 L/min

63 L/min

  Liquid temperature

~120

  Connection

Suction and Discharge : JIS 20K

  Bearing

Oil-bath configuration


  Material

  Series

TN

TN-4P

  Casing / cover

SCS13

  Impeller

SS304

  Mechanical seal

Ceramic- Carbon
Option : SiC- Carbon / SiC- SiC

  O-ring

PTFE

  Shaft

SS304


    Options :

   Special specification

   Detail

   Quenching system for mechanical seal

   For liquid temperature higher than 90, Crytallization of liquid when exposed to the ambient air

 External jacket system for mechanical seal

   Thermal insulation for mechanical seal

   Cooling system of bearing

   When bearing need to be cooled



Dimensions
   Please ask sales representative for the detail
