Sn / snw

SN / SNW

High pressure stainless steel regenerative turbine pump

Applications
   General industrial applications
   Pure water and chemical liquid supply
   Washing solvent supply, suitable for filtration applications

 Features
   No metal contact between the impeller and the
   casing and cover, eliminating wear and
   reducing contamination
   Simple robust structure with minimal consumable parts,
   suitable for processes requiring high reliability
   Due to selection of material combinations (SUS304 /
   PTFE / SiC) can target variety of applications
   Very low noise levels silimar to centrifugal pumps,
   additional noise reduction measures not required

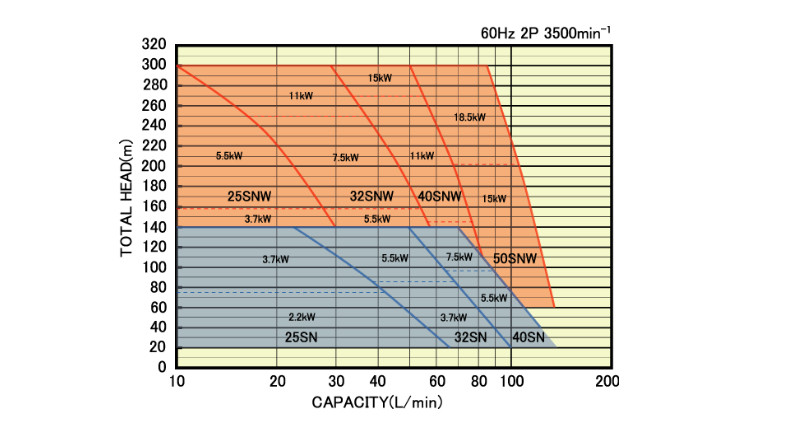

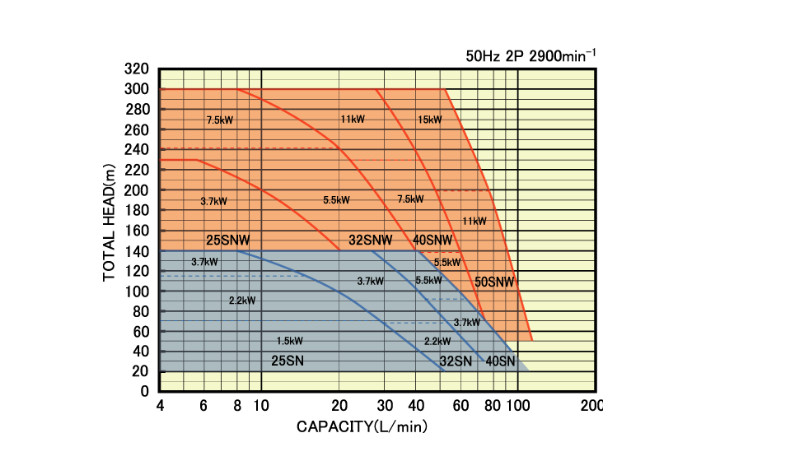

Performance curve

  Specification data

Connections
  SN : Suction JIS 20K, Discharge JIS 20K
  SNW :  Suction JIS 10K, Discharge JIS 20

  Material

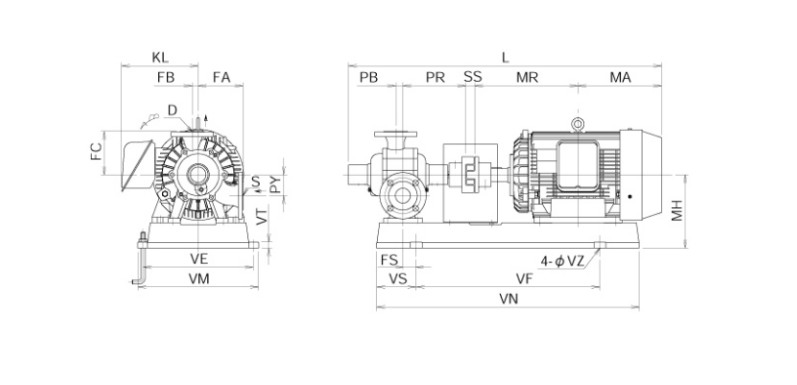

Dimensions

Standard accessories :  Coupling, base-plate, coupling guard, & flange gaskets

Dimensions
   Please ask sales representative for the detail
